Drain System

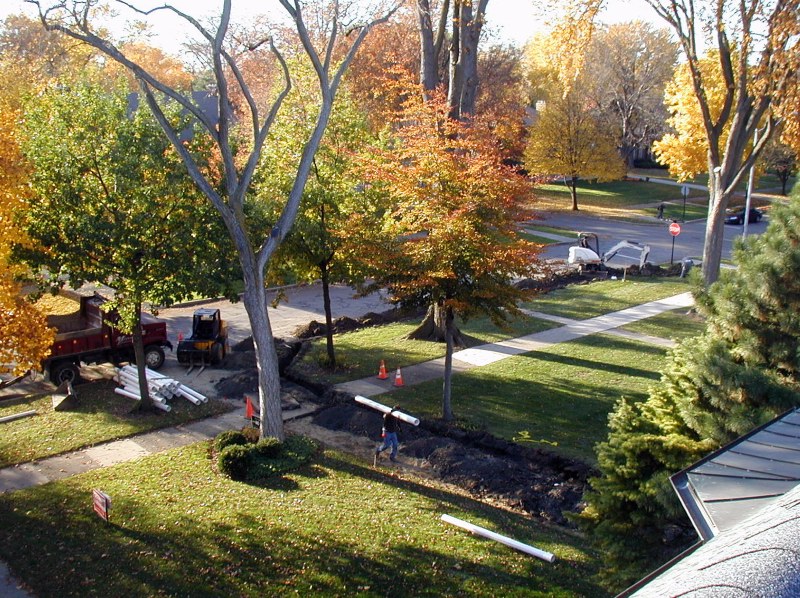

Vince trenches to the city inlet while 6 inch pipe is being distributed for burial.
Vince trenches to the city inlet while 6 inch pipe is being distributed for burial.

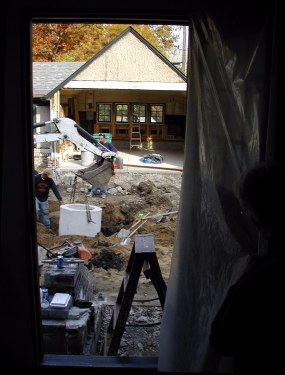

Vince lowers the sump casting into center of driveway
Sump casting being lowered into center of driveway.

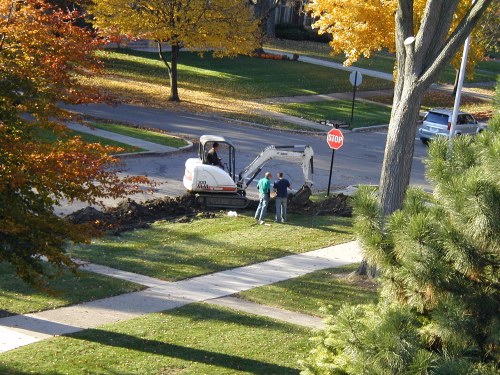

Encountering root flairs from recently removed Elm tree.
Encountering root flares from recently removed Elm tree.

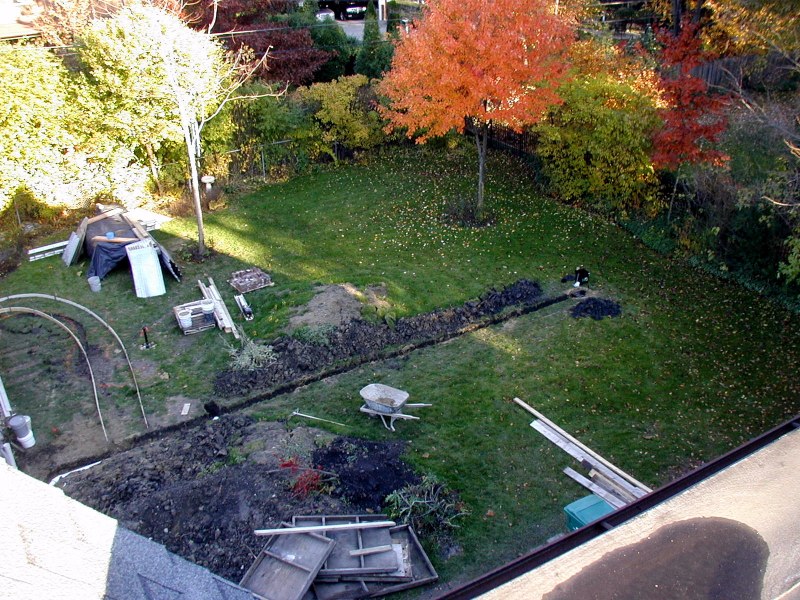

Trench completed for one of the two new catch basins.
Trench completed for one of the two new catch basins.
Rear garage downspout will connect to system and to existing french drain shown along fence at right.
Rear garage down spout will connect to system and to existing French drain shown along fence at right. Walkway forms are in place.

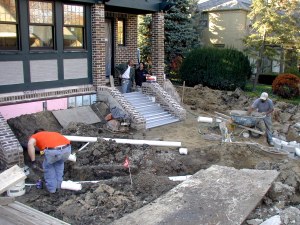

Plumber trenches for downspout, Dave and Linda prep steps, and Cruz muds sump. Trench to city storm sewer is in background.
Plumber trenches for down spout, Dave and Linda prep steps, and Cruz muds sump. Trench to city storm sewer begins in background.
Two conduits are connected. Pea gravel and rigid basement insulation are in place.
Conduits are connected. Pea gravel and rigid basement insulation are in place.

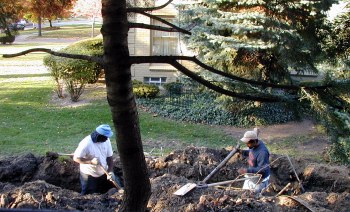

Maurice and Cruz clear roots in drain line trench along driveway.
Maurice and Cruz clear roots in drain line trench along driveway.

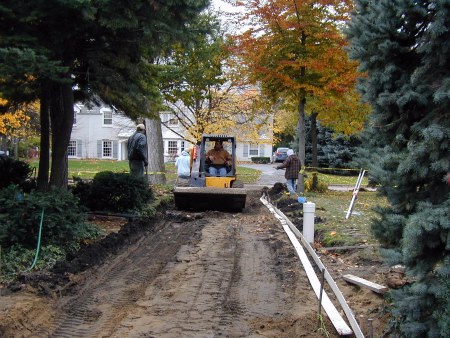

At right, drain to city storm sewer is buried, leaving clean out exposed where it turns to run parallel to drive.
Drain to city storm sewer is buried, leaving cleanout exposed where it turns to run along side of drive.

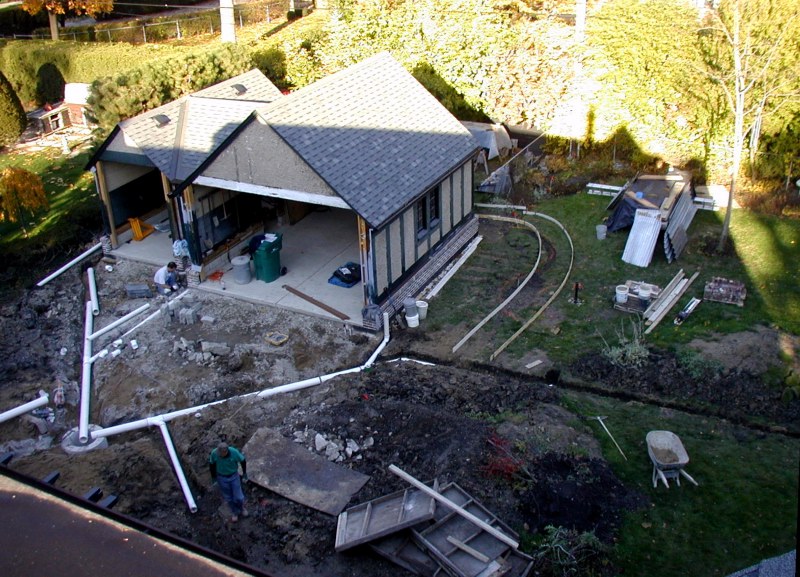

Aerial view of system with plumber preparing for garage downspout connection.
Aerial view of system with plumber preparing for garage down spout connection.

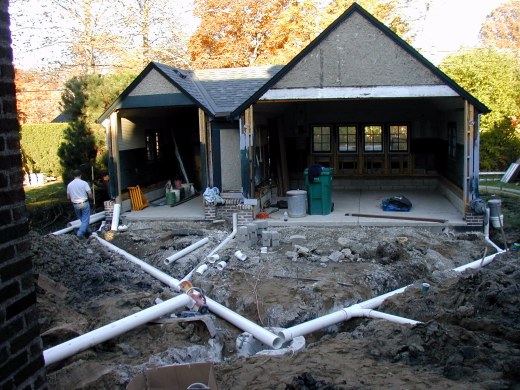

Lines being connected to sump
Lines being connected to sump in foreground.

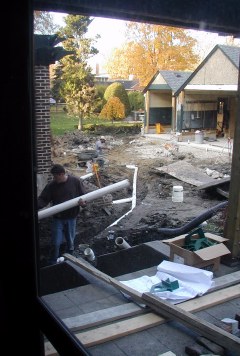

Pipe for downspout connections is placed in trenches.
Pipe for down spout connections is placed in trenches.
